MIC configurator

Author

MIK Configurator is a free software tool designed for configuring, parameterizing, and diagnosing MIK series devices, including regulators, indicators, I/O modules, and controllers manufactured by MICROL LLC.

⚙️ Key Features:

🔧 Device Parameter Configuration

• Read current parameters from the device
• Write modified parameters to the device's memory
• Load/save configurations to/from a file
• Perform batch configuration of identical devices

🧩 Device Support

The software is compatible with the following devices:

• Analytical Instruments: PP-10, PP-110
• Manual Control Units: BRU-5, 7, 10, 15, 17, 105, 107
• I/O Modules:
  • RIO-AI4, AI8, AIU8, AO4, AO6, DI16, DIO16, DO8, DO16, PID, RPM3
  • RIO-5N-AI4, AI8, AIU8, AO4, DI16, DI32, DI8DO8, DI24DO8, DO16
• Indicators: ITM-1, 4, 10, 11, 12, 16, 100, 101, 110, 111, 112, 115, 120, 122
• Power Network Indicators: IPM-1, 1N, 2, 2N, 3, 3N
• Wood Moisture Indicators: IVM-16N
• Voltage/Current Converters: PNS-11, 12, 13
• Mutual Inductance Converters: BPVI-10
• PID Controllers: MIK-12, 21, 22, 25, 111, 112, 121, 122; MTR-8, 44, 138
• Timers, Counters, Flow Meters, Dosing Controllers: MTL-32
• Level Relays: RSU-31, 41N
• Signal Units: UAS-16MI, PTS-164MI

🖥️ User Interface

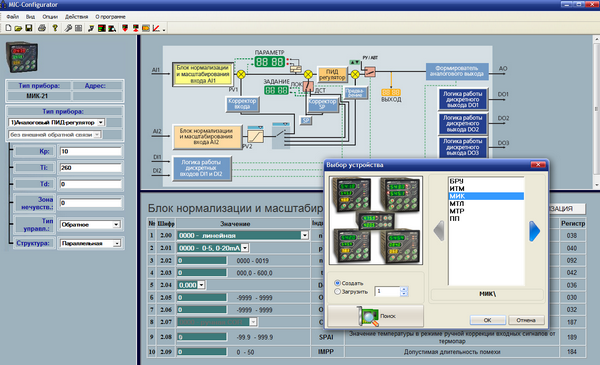

• Intuitive graphical UI
• Visual configuration editor
• Parameter filtering and search
• Tabbed or tree-based parameter organization

🔄 Communication

• Interfaces: RS-485, USB, Ethernet
• Protocol support: Modbus RTU
• Auto device detection and identification
• Manual address entry option

📁 Configuration Export/Import

• Create templates for batch setup
• Compare device and file-based configurations

📊 Diagnostics

• Verify communication with connected devices
