PLC controller

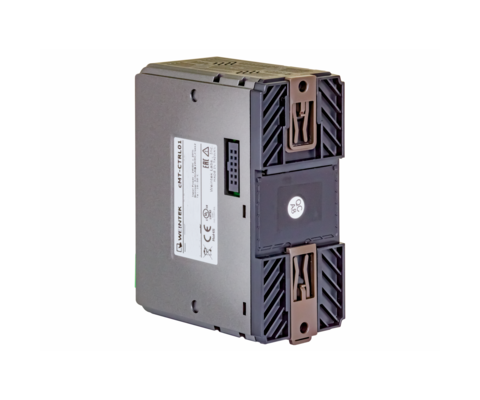

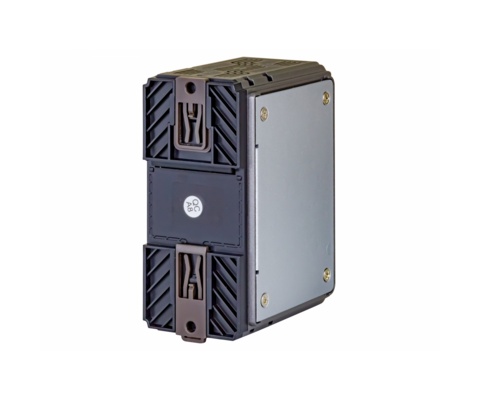

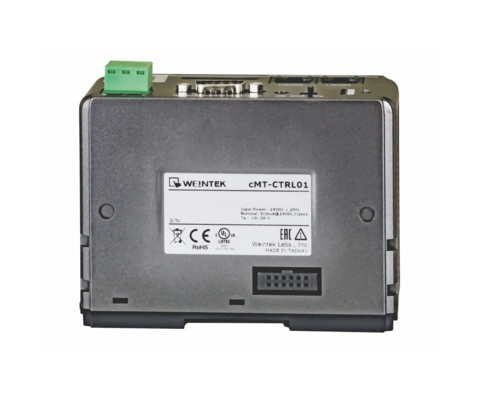

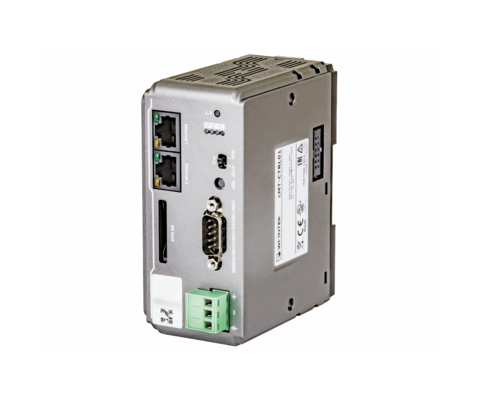

cMT-CTRL01 PLC controller

Order code:

cMT-CTRL01

Number:

Available in stock

🎯 Purpose:

The Weintek cMT-CTRL01 is a programmable logic controller (PLC) powered by the CODESYS V3 environment, enabling the execution of control programs in compliance with the IEC 61131-3 standard. It is designed for use in modern automation systems where the following are required:

  • 👨‍💻 Execution of process control logic.
  • 📡 Integration with a wide range of industrial protocols.
  • 🌐 Development of distributed control systems using SCADA, HMI, and IoT solutions.

💡 Functional Capabilities:

🔄 Control Logic

  • Program execution in IEC 61131-3 languages (LD, ST, FBD, SFC, IL, CFC).
  • Access to CODESYS function block libraries.
  • Support for PLCopen Motion Control for drive systems.
  • Support for CODESYS SoftMotion, including CNC and robotics.

📡 Communications

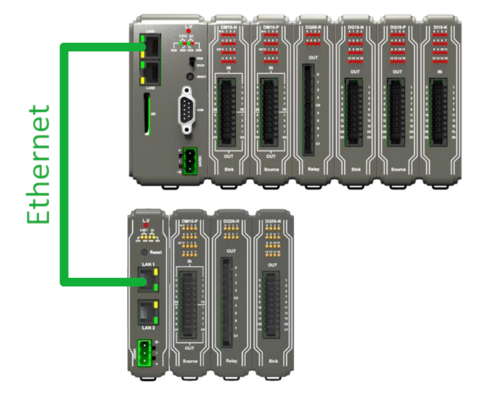

  • Support for external Weintek iR series I/O modules with direct connection.
  • Connectivity with a wide range of PLCs and devices through standard Weintek drivers.
  • EtherCAT Master for high-speed I/O systems and servo drives.
  • OPC UA and MQTT for integration with SCADA, MES, ERP, and cloud IoT services.

🖥 HMI Integration

  • Parallel operation with Weintek cMT panels (EasyBuilder Pro + CODESYS Runtime).

💾 Data Handling

  • Data logging on microSD/USB in CSV, Excel formats.
  • Data transmission via FTP, e-mail, or cloud services.
  • Built-in alarms, historical trends, and event logging.

🛡 Safety and Reliability

  • Fail-safe data protection in case of power loss.
  • Galvanic isolation of communication interfaces.
  • Support for redundant connections (Redundancy).

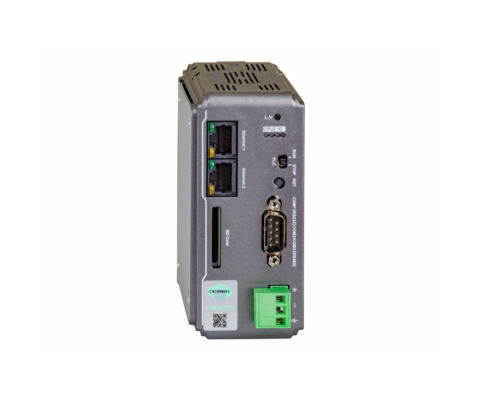

Interfaces:
  • 2×Ethernet 10/100/1000 Mbit/s (RJ‑45)
  • 1×COM1: RS‑232
  • 1×COM2: RS‑485 2W/4W
  • 1×COM3: RS‑485 2W
  • 1×USB 2.0
Protocol:
  • Modbus TCP/IP Master
  • EtherCAT Master
  • EtherNet/IP Scanner
  • Canopen Manager
USO modules:
  • the entire line of iR modules
  • MAX 16 pieces
  • iR-Dxxx-X
  • iR-Axxx-X
  • iiR-PU01-P
  • iR-ETN40
Power supply:
  • 24V DC (allowable range 18…28V)
  • Consumption: 0.55A at 24V
Memory:
  • File system: 12MB
  • Data memory: 5MB
  • Retain, Persistent: 32KB
