Indicator - measuring device of technological parameters, dual-channel with archiving

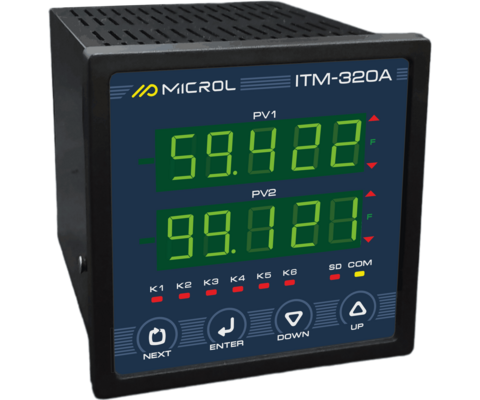

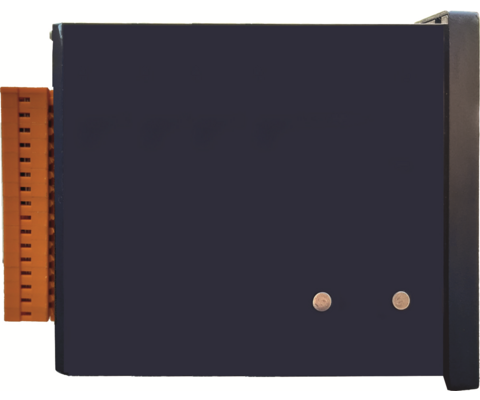

ІТМ-320А Indicator - measuring device of technological parameters, dual-channel with archiving

Choose a modification:

Order code:

ІТМ-320А
AA
Input Channel 1 Type:
BB
Input Channel 2 Type:
Ga
Passive Sensor Power Supply:
C1
Code of the First Combined Exit:
С1
Code of the Second Combined Exit:
F
Discrete Output Signal Code:
L
Memory Card Supplied:
R
RS-485 Interface:
T
Ethernet Interface:
U
Power Supply Voltage:

Number:

Available for order.

ITM-320A is a dual-channel industrial indicator-measurer designed for simultaneous measurement, display, data logging, and remote monitoring of up to four technological parameters: temperature, pressure, humidity, flow, level, and other physical quantities across various industrial applications (depending on the connected sensor). It provides output control signals and remote access via a web interface.

⚙️ Functional Features:

📊 Measurement & Indication:

  • 2 independent universal inputs for measuring temperature or other physical quantities (pressure, humidity, flow, level, etc.) using sensors with standardized current or voltage output. Changing the sensor type does not require recalibration.
  • Real-time value display on a digital screen, digital 5 digits.
  • Input range scaling for each channel.
  • Digital filtering and signal correction.

💾 Data Logging:

  • Archiving data to a microSD card in CSV format.
  • Saving to separate files sorted by date.
  • Configurable logging interval and built-in real-time clock.

🌐 Web Interface:

  • Remote viewing of current values and export of archived data.
  • Device parameter configuration.

🚨 Alarm Functionality:

  • Alarm on exceeding preset parameter limits with triggering of discrete outputs.
  • Linear conversion of the input signal to a standardized analog output signal.

🔄 Additional Features:

  • Mathematical functions.
  • Interfaces: RS-485, USB, Ethernet.
  • Protocols: Modbus RTU, Modbus TCP.
Input signals:
  • quantity: 2
  • unified signals
  • voltage
  • resistance temperature transducers
  • thermocouples
Discrete outputs:
  • quantity: 6
  • transistor OK: up to 40V, 100mA
  • relay: up to 230V, 5A.
Interfaces:
  • USB (configuration)
  • RS-485(Modbus RTU)
  • Ethernet (Modbus TCP, Web)
Analog output:
  • quantity: 2
  • unified signals
Power supply:
  • ~ 100 V to ~ 242 V, 7 VA
  • = 18 V to 36 V, 400 mА
Assembling:
  • panel
  • 96x96x153 mm
Seller

from

10 680

including VAT

Choose a modification and complete your order code

ІТМ-320

ІТМ-320А

ІТМ-322

General information:

Device type:

Technological indicator

Technological indicator

Technological indicator

Additional features:

Input signal conversion
Alarms
Integration
Mathematical functions
Archiving

Input signal conversion
Alarms
Integration
Mathematical functions
Archiving

Input signal conversion
Alarms
Integration
Mathematical functions
Archiving

Analog input signals:

Quantity of analog inputs:

2

2

2

Types of input sensors and signals:

0-5 mA, 0-20 mA, 4-20 mA, -5-5 mA, -20-20 mA
0-10 V, 0-100 mV, -10-10 V, -100-100 mV
Cu 50, Cu 100, Pt 50P, Pt 100P, Pt50, Pt100, Pt500, Pt1000
Type: K,L,N,J,S,R,B,T,E,A-1, A-2, A-3
0-150 Ohm, 0-300 Ohm, 0-1200 Ohm, 0-2500 Ohm

0-5 mA, 0-20 mA, 4-20 mA, -5-5 mA, -20-20 mA
0-10 V, 0-100 mV, -10-10 V, -100-100 mV
Cu 50, Cu 100, Pt 50P, Pt 100P, Pt50, Pt100, Pt500, Pt1000
Type: K,L,N,J,S,R,B,T,E,A-1, A-2, A-3
0-150 Ohm, 0-300 Ohm, 0-1200 Ohm, 0-2500 Ohm

0-5 mA, 0-20 mA, 4-20 mA, -5-5 mA, -20-20 mA
0-10 V, 0-100 mV, -10-10 V, -100-100 mV
Cu 50, Cu 100, Pt 50P, Pt 100P, Pt50, Pt100, Pt500, Pt1000
Type: K,L,N,J,S,R,B,T,E,A-1, A-2, A-3
0-150 Ohm, 0-300 Ohm, 0-1200 Ohm, 0-2500 Ohm

Limit of the basic combined measurement error:

≤ 0.2 %
≤ 0.4 % (when switching to another sensor type, without calibration)

≤ 0.2 %
≤ 0.4 % (when switching to another sensor type, without calibration)

≤ 0.2 %
≤ 0.4 % (when switching to another sensor type, without calibration)

Рolling cycle time:

up to 0.1 seconds

up to 0.1 seconds

up to 0.1 seconds

Galvanic isolation:

• Input isolated from other circuits.
• Galvanic isolation voltage is not less than 500 V.

• Input isolated from other circuits.
• Galvanic isolation voltage is not less than 500 V.

• Input isolated from other circuits.
• Galvanic isolation voltage is not less than 500 V.

Switching to another sensor type:

User-selectable sensor type switching. No calibration required.

User-selectable sensor type switching. No calibration required.

User-selectable sensor type switching. No calibration required.

Discrete input signals:

Quantity of discrete inputs:

Not included

Not included

Not included

Analog output signals:

Number of outputs:

2 (option)

2 (option)

2 (option)

Output type:

active

active

active

Ranges of possible output signals:

0 to 5 mA / R ≤ 2000 Ω
0 to 20 mA / R ≤ 500 Ω
4 to 20 mA / R ≤ 500 Ω
0 to 10 V / R ≤ 2 кΩ

0 to 5 mA / R ≤ 2000 Ω
0 to 20 mA / R ≤ 500 Ω
4 to 20 mA / R ≤ 500 Ω
0 to 10 V / R ≤ 2 кΩ

0 to 5 mA / R ≤ 2000 Ω
0 to 20 mA / R ≤ 500 Ω
4 to 20 mA / R ≤ 500 Ω
0 to 10 V / R ≤ 2 кΩ

The limit of the main combined error of the output signal formation:

≤ 0.2 %

≤ 0.2 %

≤ 0.2 %

Discrete output signals:

Quantity of discrete outputs:

4
+2 if ordering a replacement analog output

4
+2 if ordering a replacement analog output

4
+2 if ordering a replacement analog output

Types of discrete outputs:

• NPN transistor: up to 40V, 100mA
• Closing relays: up to 230V, 5A
• Switching relay: up to 230V, 8A (subject to order С1,С2=6)

• NPN transistor: up to 40V, 100mA
• Closing relays: up to 230V, 5A
• Switching relay: up to 230V, 8A (subject to order С1,С2=6)

• NPN transistor: up to 40V, 100mA
• Closing relays: up to 230V, 5A
• Switching relay: up to 230V, 8A (subject to order С1,С2=6)

Interfaces:

Data exchange interface:

RS-485
USB
Ethernet

RS-485
USB
Ethernet

RS-485
USB
Ethernet

Data exchange protocol:

Modbus RTU
Modbus TCP

Modbus RTU
Modbus TCP

Modbus RTU
Modbus TCP

Indication:

Indication type:

Seven-segment, digital
4-digit display

Seven-segment, digital
5-digit display

Seven-segment, digital
4-digit display
Vertical bar graph

Indication accuracy:

Four categories

Four categories

Four categories

Electrical data:

Supply voltage:

Alternating current: 230 V
Direct current: 24 V

Alternating current: 230 V
Direct current: 24 V

Alternating current: 230 V
Direct current: 24 V

Power consumption:

Direct current: no more than 400 mA
Alternating current: no more than 7 VA

Direct current: no more than 400 mA
Alternating current: no more than 7 VA

Direct current: no more than 400 mA
Alternating current: no more than 7 VA

Availability of a built-in power supply for inputs:

Yes, optional, if specified in the order
= 24 V, 25 mA (two channels)

Yes, optional, if specified in the order
= 24 V, 25 mA (two channels)

Yes, optional, if specified in the order
= 24 V, 25 mA (two channels)

Non-volatile memory:

Yes, EEPROM

Yes, EEPROM

Yes, EEPROM

Galvanic isolation:

• Full. All components of the device are isolated from each other.
• Galvanic (electrical) isolation voltage (for outputs and interface), not less than 500 V

• Full. All components of the device are isolated from each other.
• Galvanic (electrical) isolation voltage (for outputs and interface), not less than 500 V

• Full. All components of the device are isolated from each other.
• Galvanic (electrical) isolation voltage (for outputs and interface), not less than 500 V

Corps:

Installation type:

Shield

Shield

Shield

Case size (HxWxD):

48х96х153 mm

48х96х153 mm

48х96х153 mm

Weight, not more than:

не більше 0,25 kg

не більше 0,25 kg

не більше 0,25 kg

Degree of protection:

IP30

IP30

IP30

Operating conditions:

Ambient temperature:

-40 °C to +70 °C

-40 °C to +70 °C

-40 °C to +70 °C
