Home I/O modules Discrete input/output modules:

- Discrete input/output module, combined

RIO-5N-DI24-DO8 - Discrete input/output module, combined

Order code:

AA

Type of discrete outputs:

T

Transistor

P

Mechanical relays

K

Solid state relay

U

Supply voltage:

12

12 V (AC/DC)

24

24 V - (AC/DC)

230

230V - (AC/DC)

Number:

Available for order.

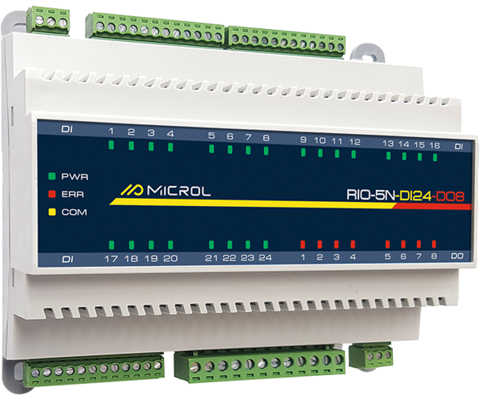

Combined discrete input/output module RIO-5N-DI24-DO8, designed for data collection from built-in inputs (discrete sensors) and for connecting actuators on automation objects and controlling them via the RS-485 network and Modbus RTU protocol. The module is controlled using a PLC, panel controller, PC or other device.

The device is manufactured in several modifications, differing from each other in built-in output elements.

Main features of the module:

24 discrete input channels;
Types of input signals: signals =24 V, transistor keys n-p-n and p-n-p type;
8 discrete output channels;
Types of output signals: transistor, mechanical relay, solid-state relay;
Supply voltage: =12V, =24 V, ~220В.

Inputs:

quantity: 24
NPN and PNP type
=12V, =24V

Outputs:

quantity: 8
NPN transistor
Relay
Solid-state relay

Interfaces:

RS-485
Modbus RTU protocol.

Power supply:

= 24 V, 130mA
=~230В 5.5VА

Seller

from

11 896 ₴

including VAT

Choose a modification and complete your order code

RIO-5N-DI24-DO8

Discrete input signals:Quantity of discrete inputs:
24
Maximum pulse frequency:
5 Hz
Input current (input consumption), no more:
=12V, ≤10 mА
=24V, ≤10 mА
Trigger signal levels:
Logical "0" signal – "DISABLED" state: 0-3.5V (if 12V); 0-7V (if 24V)
Сигнал логічної  "1" – стан "УВІМКНЕНО": 9-15V (if 24V); 18-30V (if 24V)
Connectable sensors:
• Switching devices (contacts of buttons, switches, reed switches, relays, etc.)
• n-p-n-type with open collector output
• p-n-p-type

Discrete output signals:

Quantity of discrete outputs:

Output types:

• NPN transistor: up to 40V, 100mA
• Mechanical relay: 230V, 5A
• Solid-state (non-mechanical) relay: 40 V, up to 0.5 A (AC/DC)

Load type:

Active
Inductive

Interfaces:

Data exchange interface:

RS-485

Data exchange protocol:

Modbus RTU

Electrical data:

Supply voltage:

Direct current: 12 V
Direct current: 24 V
Alternating current: 230 V

Power consumption:

Direct current: no more than: 440mA (for 12V), 220mA (for 24V)
Alternating current: no more than: 3.5 ВА

Availability of a built-in power supply for inputs:

Yes (one per group of 8 inputs), 12V or 24V, ≤ 40 mA

Galvanic isolation:

• The inputs are connected in a group and galvanically isolated from other inputs and other circuits.
• The interface is galvanically isolated from inputs and other circuits.
• Galvanic isolation voltage is not less than 500 V.

Corps:

Installation type:

DIN rail

Case size (HxWxD):

132х153х57 mm

Weight, not more than:

0,18 kg

Degree of protection:

IP20

Operating conditions:

Ambient temperature:

-40 °C to +70 °C
