Home I/O modules Discrete input/output modules:

- Discrete input/output module, combined

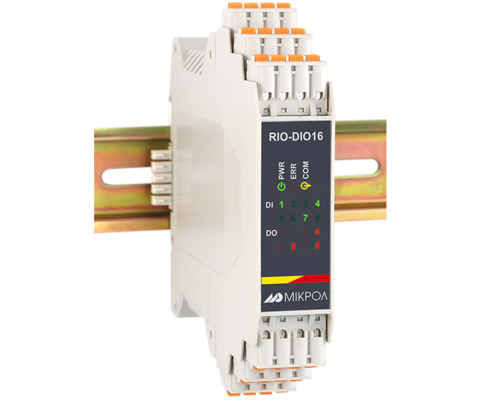

RIO-DIO16 - Discrete input/output module, combined

Choose a modification:

Order code:

RIO-DIO16
AA
Type of discrete outputs:
BB
Input power polarity type:

Number:

Available for order.

Combined discrete input/output module RIO-DIO16, designed for data collection from built-in inputs (discrete sensors) and for connecting actuators on automation objects and controlling them via the RS-485 network and Modbus RTU protocol. The module is controlled using a PLC, panel controller, PC or other device.

The device is manufactured in several modifications, differing from each other in built-in output elements.

Main features of the module:

  • 8 discrete input channels;
  • Types of input signals: signals =24 V, transistor keys n-p-n type;
  • 8 discrete output channels;
  • Types of output signals: transistor, mechanical relay relay;
  • Supply voltage: =24 V.
Inputs:
  • quantity: 8
  • NPN type
  • =24V
Outputs:
  • quantity: 8
  • NPN transistor
  • Relay
Interfaces:
  • RS-485
  • Modbus RTU protocol.
Power supply:
  • = 24 V, 130mA
Seller

from

10 434 ₴

including VAT

Choose a modification and complete your order code

RIO-DIO16

RIO-5N-DI8-DO8

RIO-mini DI4DO4

Discrete input signals:

Quantity of discrete inputs:

8

8

4

Maximum pulse frequency:

5 Hz

5 Hz

20 kHz

Input current (input consumption), no more:

=24V, ≤10 mА

=24V, ≤10 mА

=24V, ≤10 mА

Trigger signal levels:

Logical "0" signal – "DISABLED" state: 0-7V
Сигнал логічної "1" – стан "УВІМКНЕНО": 18-30V

Logical "0" signal – "DISABLED" state: 0-7V
Сигнал логічної "1" – стан "УВІМКНЕНО": 18-30V

Logical "0" signal – "DISABLED" state: 0-7V
Сигнал логічної "1" – стан "УВІМКНЕНО": 18-30V

Connectable sensors:

• Switching devices (contacts of buttons, switches, reed switches, relays, etc.)
• n-p-n-type with open collector output

• Switching devices (contacts of buttons, switches, reed switches, relays, etc.)
• n-p-n-type with open collector output
• p-n-p-type

• Switching devices (contacts of buttons, switches, reed switches, relays, etc.)
• n-p-n-type with open collector output
• p-n-p-type

Discrete output signals:

Quantity of discrete outputs:

8

8

4

Output types:

• NPN transistor: up to 40V, 100mA
• Mechanical relay: 230V, 5A

• NPN transistor: up to 40V, 100mA
• Mechanical relay: 230V, 5A
• Solid-state (non-mechanical) relay: 40 V, up to 0.5 A (AC/DC)

• NPN transistor: up to 40V, 100mA
• Mechanical relay: 230V, 5A
• Solid-state (non-mechanical) relay: 40 V, up to 0.5 A (AC/DC)

Load type:

Active
Inductive

Active
Inductive

Active
Inductive

Interfaces:

Data exchange interface:

RS-485

RS-485

RS-485
USB

Data exchange protocol:

Modbus RTU

Modbus RTU

Modbus RTU

Electrical data:

Supply voltage:

Direct current: 24 V

Direct current: 24 V
Alternating current: 230 V

Direct current: 24 V
Alternating current: 230 V

Power consumption:

Direct current: no more than 130 mA

Direct current: 130mA
Alternating current: no more than: 3.5 ВА

Direct current: 60mA
Alternating current: no more than: 1.5 ВА

Availability of a built-in power supply for inputs:

Yes (one source per group of 8 inputs), 24V, ≤ 40 mA

Yes (one per group of 8 inputs), 24V, ≤ 40 mA

Yes, =24V, 30mA

Galvanic isolation:

• The inputs are connected in a group and galvanically isolated from other inputs and other circuits.
• The interface is galvanically isolated from inputs and other circuits.
• Galvanic isolation voltage is not less than 500 V.

• The inputs are connected in a group and galvanically isolated from other inputs and other circuits.
• The interface is galvanically isolated from inputs and other circuits.
• Galvanic isolation voltage is not less than 500 V.

• Combined. Inputs have group isolation. Outputs, interface and power are isolated from other nodes and from each other.
• The interface is galvanically isolated from inputs and other circuits.
• Galvanic isolation voltage is not less than 500 V.

Corps:

Installation type:

DIN rail

DIN rail

DIN rail

Case size (HxWxD):

117х23х129 mm

132х128х57 mm

100х55х60 mm

Weight, not more than:

0,18 kg

0,18 kg

0,35 kg

Degree of protection:

IP20

IP20

IP20

Operating conditions:

Ambient temperature:

-40 °C to +70 °C

-40 °C to +70 °C

-40 °C to +70 °C
