Analog input/output module (voltage/current)

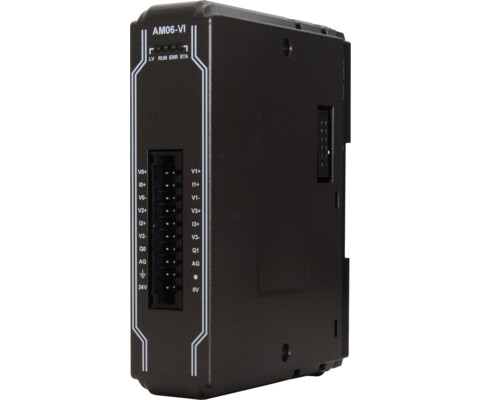

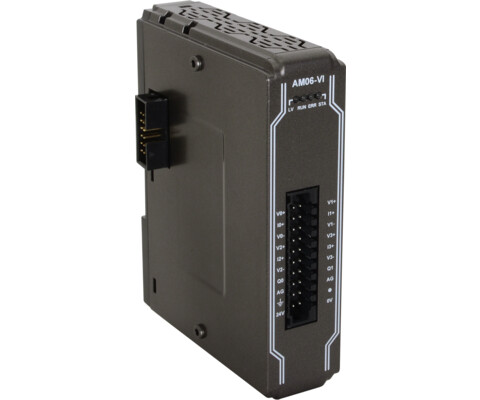

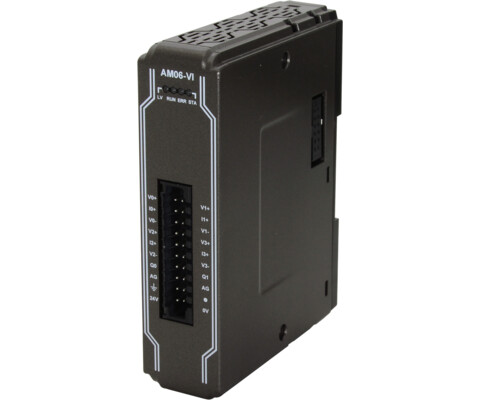

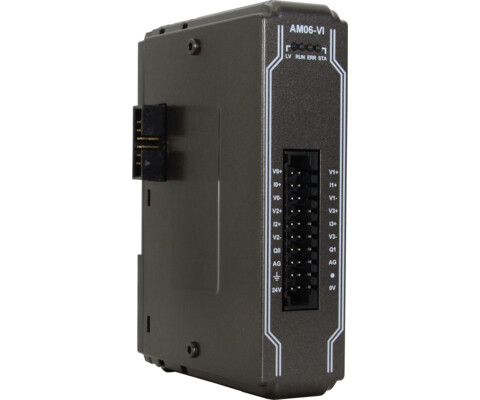

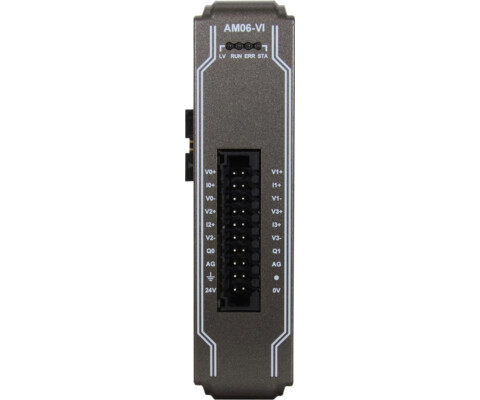

iR-AM06-VI Analog input/output module (voltage/current)

Choose a modification:

Order code:

iR-AM06-VI

Number:

Available in stock

🎯 Purpose:

The iR-AM06-VI module of the iR series from Weintek is designed for collecting and generating analog signals in industrial automation systems.
It combines 4️⃣ analog inputs and 2️⃣ analog outputs in a single unit, making it a versatile solution for measurement and control tasks.
It can be integrated with PLCs, HMIs, and SCADA systems via communication modules (iR-ETN, iR-COP, iR-ECAT), or used as an analog I/O module within the cMT-CTRL01 controller running on CODESYS.

⚙️ Technical Specifications:

🔹 Analog Inputs (AI):

  • 🔢 Channels: 4
  • 📥 Signal types:
    • Voltage: 0…10 V, ±10 V, 0…5 V, ±5 V
    • Current: 0…20 mA, 4…20 mA
  • 🎚 ADC Resolution: 16-bit
  • 🎯 Accuracy: ±0.2% FS
  • ⏱ Sampling time: ~2 ms/channel
  • 🛡️ Galvanic isolation: between inputs and logic

🔹 Analog Outputs (AO):

  • 🔢 Channels: 2
  • 📤 Signal types:
    • Voltage: 0…10 V, ±10 V
    • Current: 0…20 mA, 4…20 mA
  • 🎚 DAC Resolution: 12-bit
  • 🎯 Accuracy: ±0.2% FS
  • ⚡ Load:
    • Voltage: ≥ 2 kΩ
    • Current: ≤ 500 Ω
  • ⏱ Settling time: ≤ 1 ms

🔹 General Parameters:

  • 🔋 Power supply: from internal bus (~70 mA)
  • 🌡 Operating temperature: 0…+55 °C
  • 📦 Connections: removable terminal blocks
  • 📐 Dimensions: 30 × 109 × 81 mm
  • ⚖️ Weight: ~130 g
  • 📏 Protection: IP20, DIN-rail mounting

💡 Functional Features:

  • ✔️ Analog signal acquisition 📊 — collecting data from sensors for temperature 🌡, pressure, level, flow, position, etc.
  • ✔️ Analog output generation ⚡ — controlling actuators such as VFDs, valves, and positioners.
  • ✔️ Flexible configuration 🔧 — each channel can be individually set to the required range (V or mA).
  • ✔️ Direct integration with cMT-CTRL01 🖥️ — works as a universal analog module in CODESYS projects.
  • ✔️ Scalability 🚀 — fully compatible with other iR series modules (digital, analog, combined).
  • ✔️ Reliability 🛡️ — galvanic isolation between inputs/outputs and internal logic protects against noise and overloads.
  • ✔️ High accuracy 🎯 — 16-bit ADC and 12-bit DAC ensure precise measurements and stable signals.
  • ✔️ Visual monitoring 💡 — LED indicators for power and error states.
  • ✔️ Ease of installation 🔌 — compact housing and removable terminals simplify wiring and maintenance.
Input/Output:
  • 4 analog unified inputs
  • 2 analog unified outputs
  • voltage and current
Interfaces:
  • Connection from communication module
  • iR-ETN
  • iR-COP
  • iR-ECAT
  • cMT-CTRL01
Power supply:
  • From communication module
  • iR-ETN
  • iR-COP
  • iR-ECAT
  • cMT-CTRL01
