Discrete output module (NPN transistor)

iR-DQ08-R Discrete output module (NPN transistor)

Choose a modification:

Order code:

iR-DQ08-R

Number:

Available in stock

🎯 Purpose:

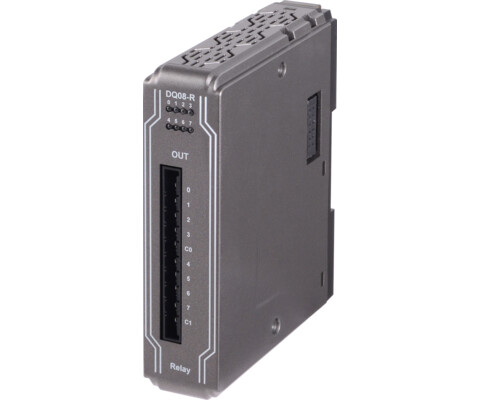

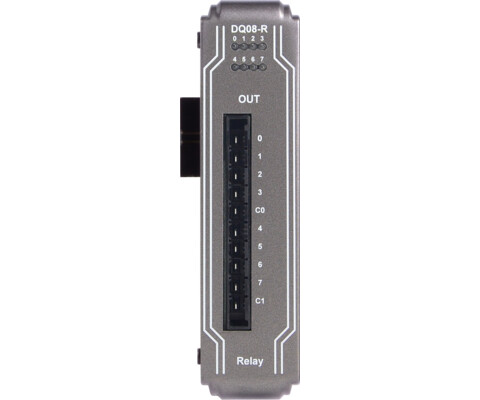

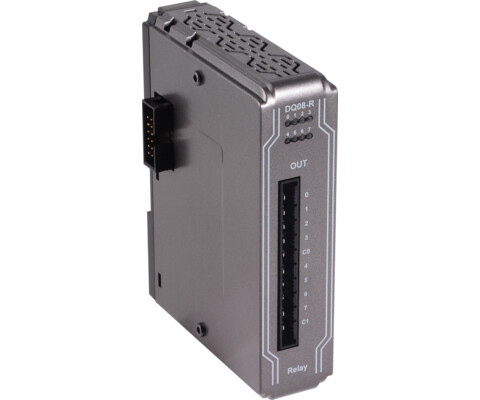

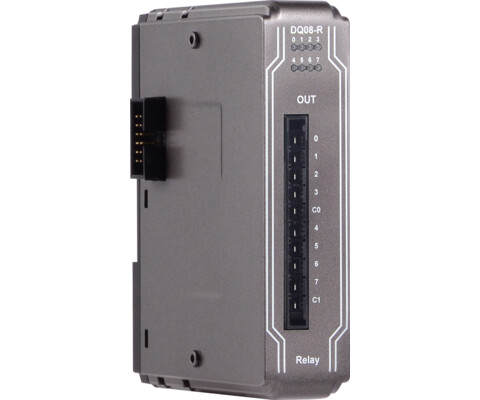

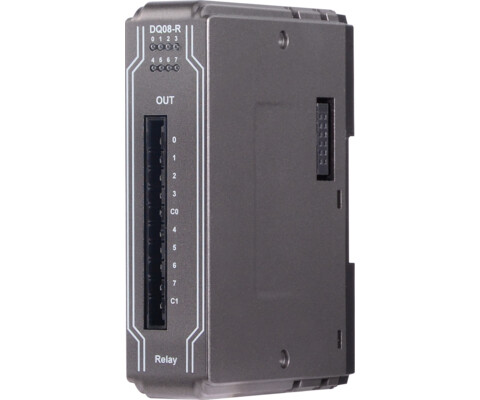

The iR-DQ08-R module of the iR series by Weintek is designed for generating digital control signals in industrial automation systems.
It provides 8 relay outputs for connecting external relays, indicators, solenoid valves, small motors, and other equipment.

The module can be used as:

  • part of distributed I/O systems of the iR series via communication modules (iR-ETN, iR-COP, iR-ECAT),
  • or directly integrated as an output module to the cMT-CTRL01 controller running on CODESYS.

🔧 Technical Specifications:

  • Outputs: 8 digital relay outputs, up to 2 A/channel, total up to 8 A
  • 🔋 Rated output voltage: 24 V DC (−15% … +20%)
  • Output response time: ≤ 10 ms
  • 🛡 Galvanic isolation: between outputs and module internal logic
  • 📦 Connections: removable terminal blocks for easy installation
  • 🔋 Power consumption: ~220 mA (from internal power bus)
  • 🌡 Operating temperature: 0…+55 °C
  • 📐 Dimensions: 30 × 109 × 81 mm
  • ⚖️ Weight: ~120 g
  • 📏 Protection rating: IP20, DIN-rail mounting

💡 Functional Features:

  • ✔️ Digital control signal generation — controls actuators such as relays, indicators, valves, and small motors.
  • ✔️ Reliable operation — relay outputs provide robust switching for medium-power loads.
  • ✔️ Direct integration with cMT-CTRL01 — works as an output module in CODESYS projects.
  • ✔️ Scalability — can be combined with other iR series modules (digital inputs, analog, mixed, high-speed).
  • ✔️ Visual monitoring — LED indicators for each output allow real-time status monitoring.
  • ✔️ Reliability — galvanic isolation of outputs protects internal logic from noise and overloads.
  • ✔️ Easy installation — compact housing and removable terminals ensure quick and safe wiring.
Output:
  • 8 discrete outputs (relay)
Interfaces:
  • Connection from communication module
  • iR-ETN
  • iR-COP
  • iR-ECAT
  • cMT-CTRL01
Power supply:
  • From communication module
  • iR-ETN
  • iR-COP
  • iR-ECAT
  • cMT-CTRL01
