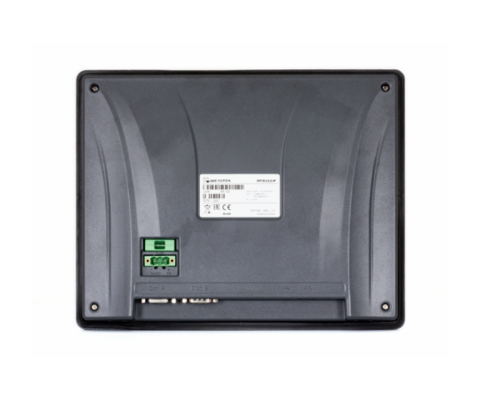

MT8106iP HMI

Choose a modification:

Order code:

MT8106iP

Number:

Available in stock

The Weintek iP series of HMI panels is designed for cost‑effective automation projects that do not require advanced functionality but demand reliable and stable operation.

Key Features of the Series

  • 📊 High‑quality color display with clear visuals and convenient data representation;
  • High performance at an optimal cost;
  • 🛠 Support for the EasyBuilder Pro environment, enabling quick project development and seamless HMI integration into existing systems;
  • 💡 Basic functionality, sufficient for most standard automation tasks;
  • 🏭 Reliable industrial design, intended for operation in harsh environments.

Advantages of the iP Series

  • Optimal balance between cost and capability;
  • Easy integration into both new and existing automation systems (SCADA / PLC);
  • Reliable operation in budget‑oriented projects where extended functionality is not required;
  • Weintek quality and stability, maintained even in the economy series.

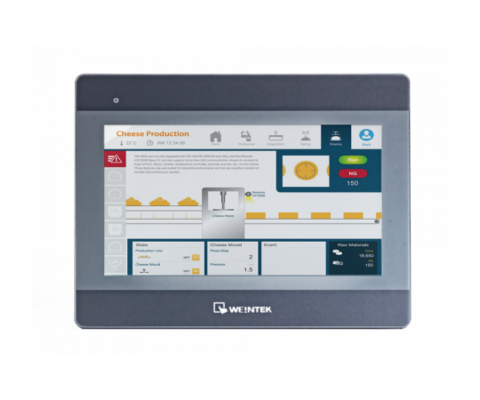

Display:
  • Diagonal: 10"
  • Resolution: 1024×600
  • Brightness: ~350 cd/m²

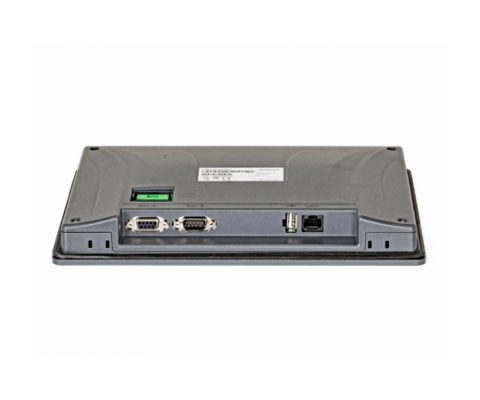

Interfaces:
  • 1× Ethernet 10/100 Mbit/s (RJ‑45)
  • 1×COM1: RS‑232
  • 1×COM2: RS‑485 2W/4W
  • 1×COM3: RS‑485 2W
  • 1×USB 2.0
Power supply:
  • 24V DC (allowable range 18…28V)
  • Consumption: ~400mA at 24V
Seller

15 720

including VAT

MT8072iP

MT8106iP

Display

Diagonal:

7"

10.1"

Screen type:

TFT

Wide Viewing Angle (WVA)

Resolution:

800 x 480

1024 x 600

Brightness (cd/m2):

400

350

Contrast Ratio:

500:1

1000:1

Backlight Type:

LED

LED

Backlight Life Time, hrs.:

>30,000

>50,000

Colors:

16.7M

16.7M

Touch panel

Type:

4-wire Resistive Type

4-wire Resistive Type

Accuracy:

Active Area Length(X)±2%, Width(Y)±2%

Active Area Length(X)±2%, Width(Y)±2%

Memory

Flash:

256 MB

256 MB

RAM:

128 MB

128 MB

Processor

Processor type:

Dual-core RISC

Dual-core RISC

Interfaces:

SD Card Slot:

N/A

N/A

USB Host:

USB 2.0 x 1

USB 2.0 x 1

Ethernet:

1: 10/100 Base-T x 1

1: 10/100 Base-T x 1

COM Port:

1: RS-232 4W
1: RS-485 2W
1: RS-485 4W

1: RS-232 2W
1: RS-232 4W
2: RS-485 2W
1: RS-485 4W

CAN Bus:

N/A

N/A

Audio Output:

N/A

N/A

HDMI:

N/A

N/A

Electrical data:

Input Power:

24±20%V (DC)

24±20%V (DC)

Power Consumption:

450 mA

400 mA

Galvanic isolation:

Built-in

Built-in

Voltage Resistance:

500 VAC (1 min.)

500 VAC (1 min.)

Corps:

Enclosure:

Plastic

Plastic

Dimensions (WxHxD), mm:

200.4 x 146.5 x 34

271 x 213 x 36.4

Panel Cutout, (WxH), mm:

192 x 138

260 x 202

Weight, kg:

0.52

1

Mount

Panel mount

Panel mount

Operating conditions:

Protection Structure:

NEMA4 / IP66 Compliant Front Panel

NEMA4 / IP66 Compliant Front Panel

Storage Temperature:

-20° ~ 60°C (-4° ~ 140°F)

-20° ~ 60°C (-4° ~ 140°F)

Operating Temperature:

0° ~ 55°C (32° ~ 131°F)

0° ~ 55°C (32° ~ 131°F)

Relative Humidity:

10% ~ 90% (non-condensing)

10% ~ 90% (non-condensing)

General information:

Software:

EasyBuilder Pro V6.08.01 or later versions

EasyBuilder Pro V6.08.01 or later versions
