Discrete output module (NPN transistor)

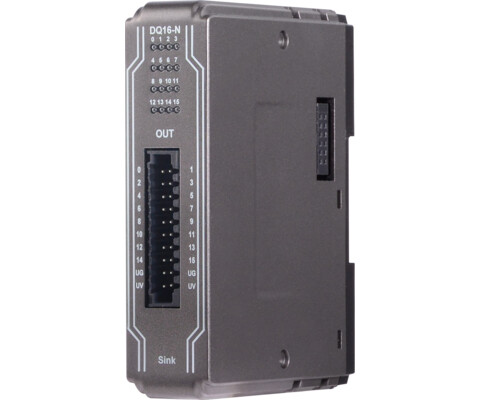

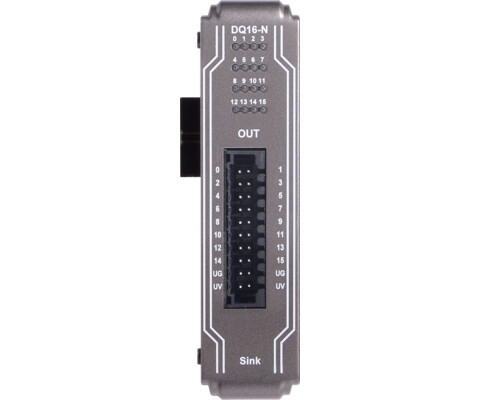

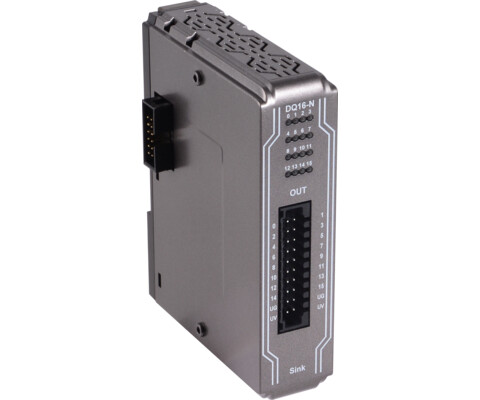

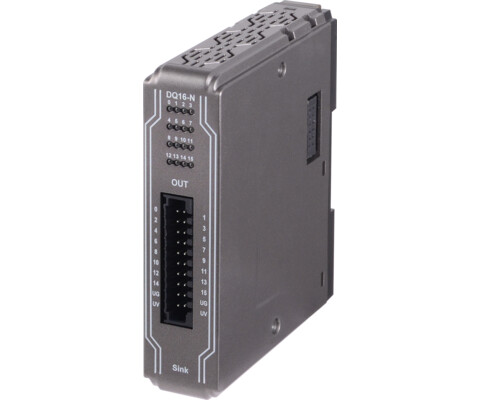

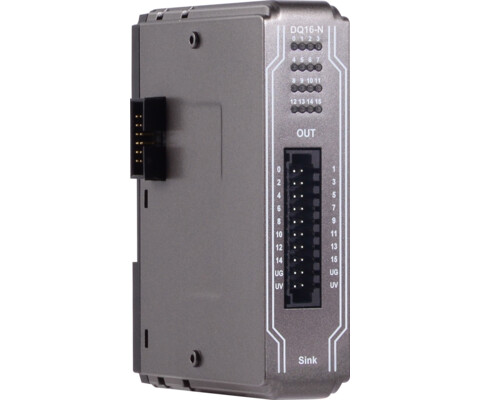

iR-DQ16-N Discrete output module (NPN transistor)

Choose a modification:

Order code:

iR-DQ16-N

Number:

Available for order.

🎯 Purpose
The iR-DQ16-N module of the iR series by Weintek is designed for generating discrete control signals in automation systems.
It provides 16 transistor outputs for connecting relays, indicators, solenoid valves, small motors, and other equipment.
It can be used as part of a distributed I/O system in the iR series through communication modules (iR-ETN, iR-COP, iR-ECAT) or directly integrated as an output module with the cMT-CTRL01 controller running on CODESYS.

🔧 Technical Specifications:

  • Outputs: 16 transistor (NPN), up to 0.5 A/channel, max. 4 A total
  • 🔋 Nominal output voltage: 24 V DC (−15% … +20%)
  • Output response time: ≤ 0.5 ms (high-speed switching)
  • 🛡 Galvanic isolation: between outputs and internal logic
  • 📦 Connections: removable terminal blocks for easy installation
  • 🔋 Power consumption: ~200 mA (from internal bus supply)
  • 🌡 Operating temperature: 0…+55 °C
  • 📐 Dimensions: 30 × 109 × 81 mm
  • ⚖️ Weight: ~120 g
  • 📏 Protection rating: IP20, DIN-rail mounting

💡 Functional Features:

  • ✔️ Control signal generation — controlling actuators such as relays, indicators, valves, and small motors.
  • ✔️ High-speed performance — transistor outputs enable fast switching, essential for high-frequency operations.
  • ✔️ Direct integration with cMT-CTRL01 — works as an output module in CODESYS projects.
  • ✔️ Scalability — can be combined with other iR series modules (digital inputs, analog modules, mixed-function, high-speed).
  • ✔️ Visual monitoring — LED indicators for each output provide real-time status feedback.
  • ✔️ Reliability — galvanic isolation of outputs protects the internal circuit against noise and overloads.
  • ✔️ Easy installation — compact housing and removable terminals ensure quick and safe wiring.
Output:
  • 16 discrete outputs (NPN)
Interfaces:
  • Connection from communication module
  • iR-ETN
  • iR-COP
  • iR-ECAT
  • cMT-CTRL01
Power supply:
  • From communication module
  • iR-ETN
  • iR-COP
  • iR-ECAT
  • cMT-CTRL01
